3 Way Manifold Valves

3 Way Manifold Valves Manufacturing and Exporters

3 Way Manifold Valves

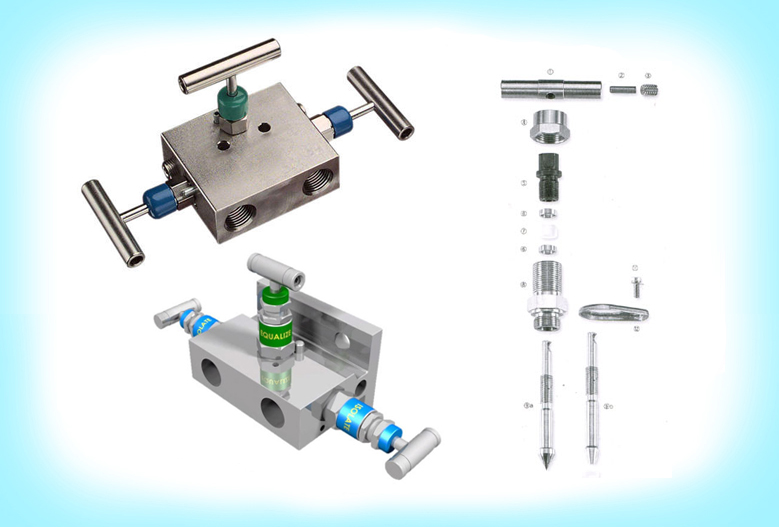

Priti Enterprises 3-Valve Manifold is a general purpose design for connection system impulse lines and transmitters. This manifold consists of two block Valves and an equalizer valve. Connection are 1/2" Female NPT on 2-1/8" (54mm_ centres safety, an bonnet lock pin is standard.

SPECIFICATION
Connection : 1/2" Female NPT to 1/2" Female NPT.
One-piece, high strength body construction for safety no welding used.
316 stainless steel construction for superior corrosion resistance.
Bonnet lock pin prevents accidental valve disassembly.
2-1/8" (54mm) Port centerline dimension for proper alignment.
100% pressure tested for shut-off and at all seals.
Manifolds feature at 4:1 safety factor.


Application : • Oil and Gas Industry • Refinery Industry • Power Generation Industry • Automobile Industry
• Chemical & Fertilizer Industry • Nuclear & Defense Industry


All Dimensions are for reference only, and are subject to change without prior Notice Sizes and types other than featured above are available on request.
